Amazon RDS

  • Relational Database Service
  • Database in cloud managed by AWS
    • Postgres
    • MySQL
    • MariaDB
    • Oracle
    • MS SQL Server
    • IBM DB2
    • Aurora (AWS Proprietary)
  • Managed service: automate backups, dashboards, disaster recovery, scaling capability.
  • Cannot SSH into instances

Storage Auto Scaling​

  • Increase storage dynamically
  • Set Maximum Storage Threshold

Read Replicas​

  • Upto 15 replicas
  • Within AZ, Cross AZ or Cross Region
  • It costs if the replica is in another region.
  • Replicas is Async, eventually consistent
  • Application must update connection string to leverage read replicas.

Use Cases​

  • Read replica for running analytics to that the main database is unaffected.

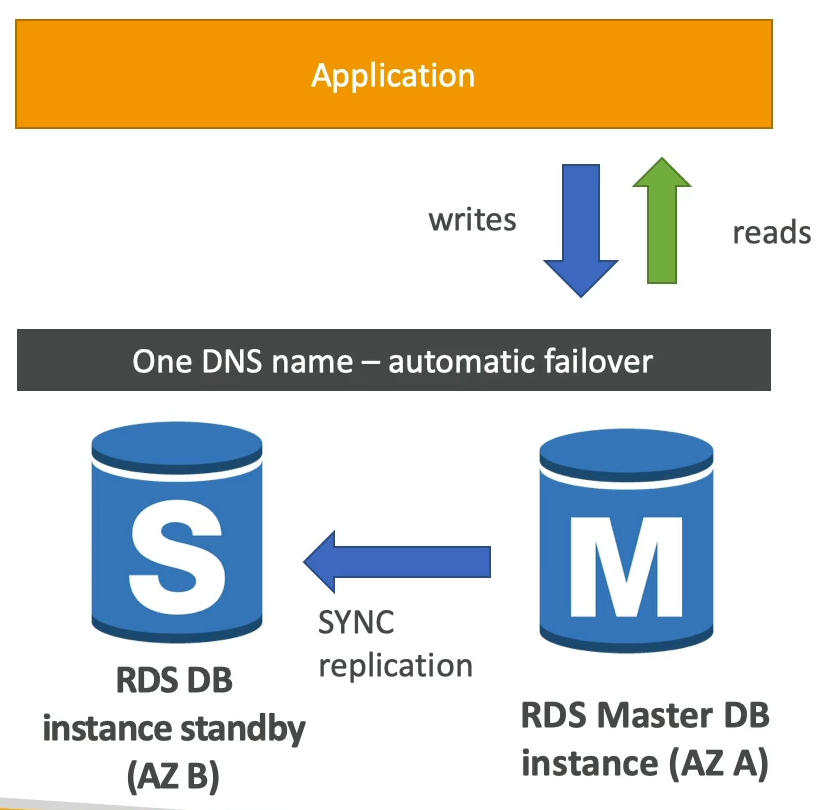

Disaster Recovery (Multi AZ)​

  • No manual intervention
  • Not for scaling
  • Read replicas can be setup as Multi AZ for disaster recovery.

disaster-recovery

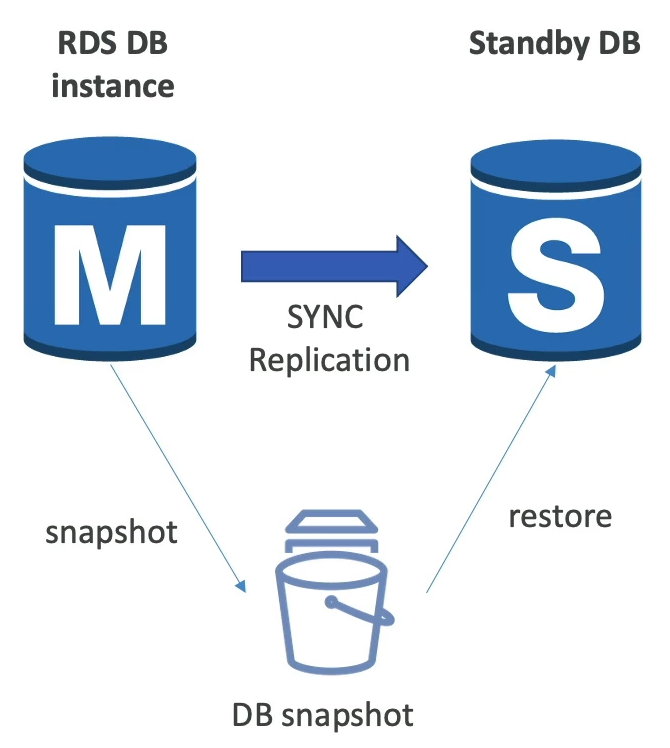

Single AZ to Multi AZ​

singleaz-multiaz

RDS Custom​

  • Oracle and MS SQL Server with OS and DB customization.

RDS Backup​

Automated Backup​

  • Daily backup; Transaction logs are backed up every 5 mins.
  • 1 to 35 days of retention; can be disabled.

Manual DB Snapshots​

  • Manual trigger
  • Retention as long as you want.
  • Trick: Stopped RDS costs more for storage. If you plan to stop for long time, you should snapshot and restore it.

Amazon RDS Proxy​

  • Allows apps to pool or share DB connections.
  • Improve DB efficiency by reducing stress on database resources and minimize open connections.
  • Reduce RDS and Aurora failover time by 66%.
  • Enforce IAM authentication for DB and securely store credentials in AWS Secrets Manager.
  • Proxy is not accessible publically, only from VPC.
